Rolling Lobe Air Springs

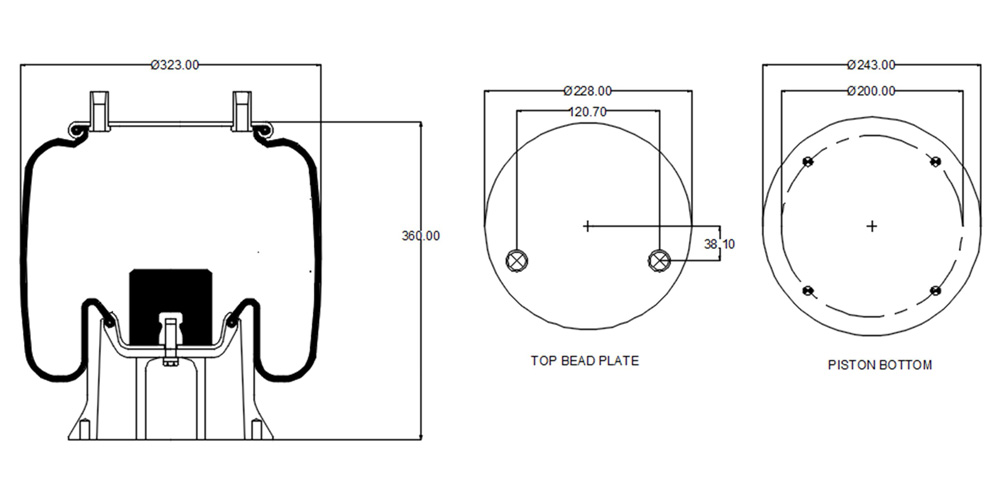

rlm-38-5

Part No. RLM-38/5 (Load Air Spring)

Operating range	140 – 360mm
Loading capacity at 6bar pressure, 250mm height	28.5kN
Loading capacity at 7bar pressure, 250mm height	33.8kN
Maximum diameter	323mm
Maximum height	380mm
Operating temperature	-40° – +60°C
Material	Natural Rubber

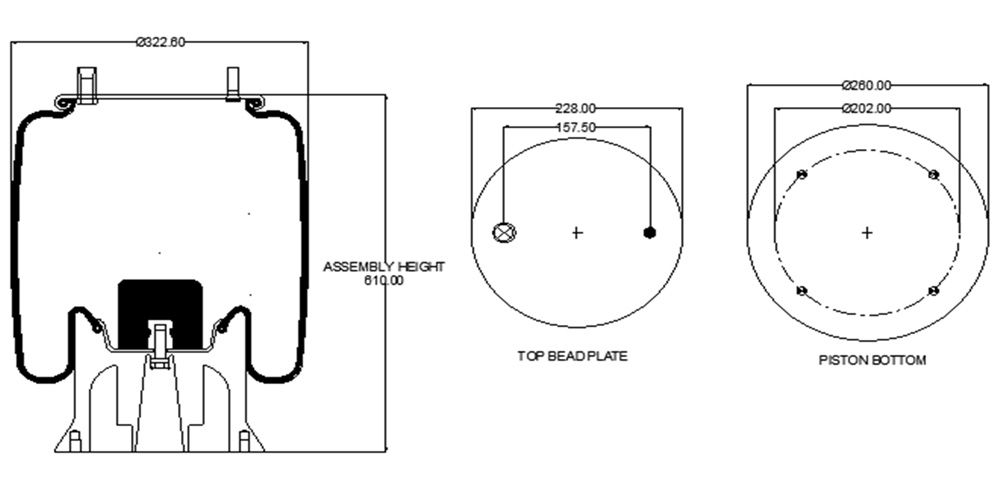

rlm-38-23

Part No. RLM-38/23 (Load Air Spring)

Operating range	200 – 610mm
Loading capacity at 6bar pressure, 350mm height	28.0kN
Loading capacity at 7bar pressure, 350mm height	33.0kN
Maximum diameter	323mm
Maximum operating height	620mm
Operating temperature	-40° – +60°C
Material	Natural Rubber

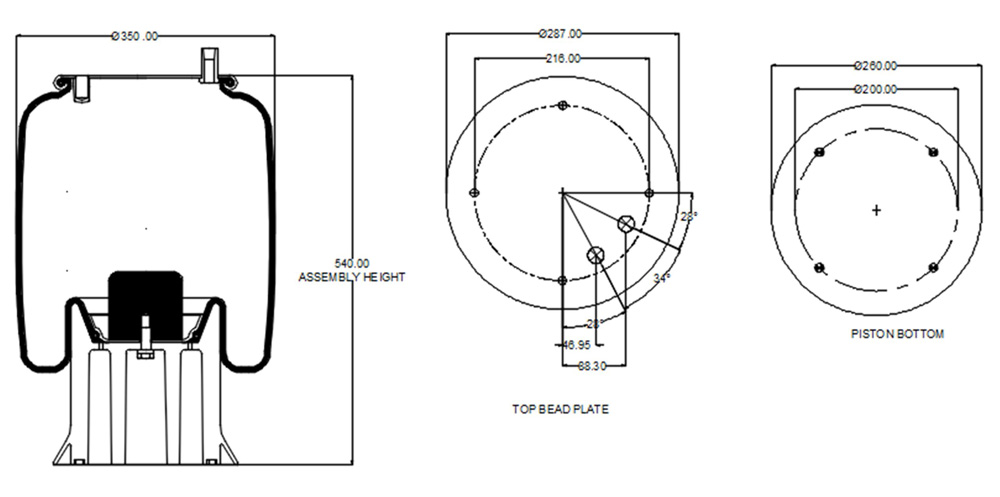

rlm-48-30

Part No. RLM-48/30 (Load Air Spring)

Operating range	210 – 610mm
Loading capacity at 6bar pressure, 350mm height	28.0kN
Loading capacity at 7bar pressure, 350mm height	33.0kN
Maximum diameter	350mm
Maximum operating height	620mm
Operating temperature	-40° – +60°C
Material	Natural Rubber

rlm-48-30-1

Part No. RLM-48/30 (Load Air Spring)

Operating range	230 – 700mm
Loading capacity at 6bar pressure, 450mm height	36.8kN
Loading capacity at 7bar pressure, 450mm height	41.2kN
Maximum diameter	350mm
Maximum operating height	720mm
Operating temperature	-40° – +60°C
Material	Natural Rubber

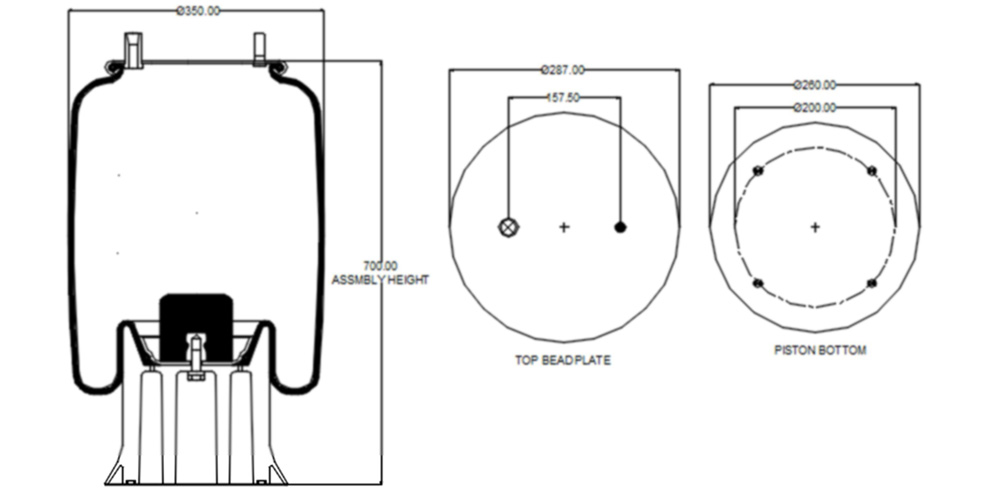

rlm-48-33

Part No. RLM-48/33 (Load Air Spring)

Operating range	230 – 680mm
Loading capacity at 6bar pressure, 450mm height	35.5kN
Loading capacity at 7bar pressure, 450mm height	41.7kN
Maximum diameter	350mm
Maximum height	700mm
Operating temperature	-40° – +60°C
Material	Natural Rubber
